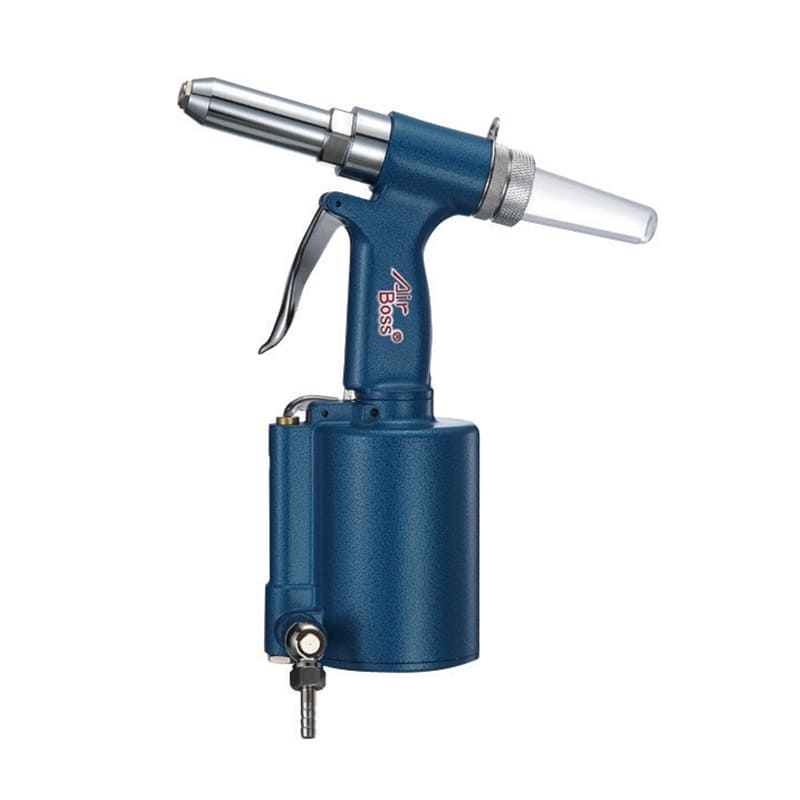

Air Hydraulic Riveter
Model : HR-101
Specification
| Model |
HR-101 |
| Traction Power (lbs) |
1940 |
| Nosepieces (mm) |
2.4-4.8 |
| Stroke (mm) |
14 |
| Rivet Nut (mm) |
--- |
| Free Speed (r.p.m) |
--- |
| Overall Length (mm) |
273 |
| Net Weight (lbs / kg) |
3.3 / 1.5 |
| Air Consumption (m³ / min) |
0.4 |
| Air Inlet (PT/NPT/PF) |
1/4" |
| Air Hose (mm) |
6.4 |
| Air Pressure (kg / cm²) |
6.3 |

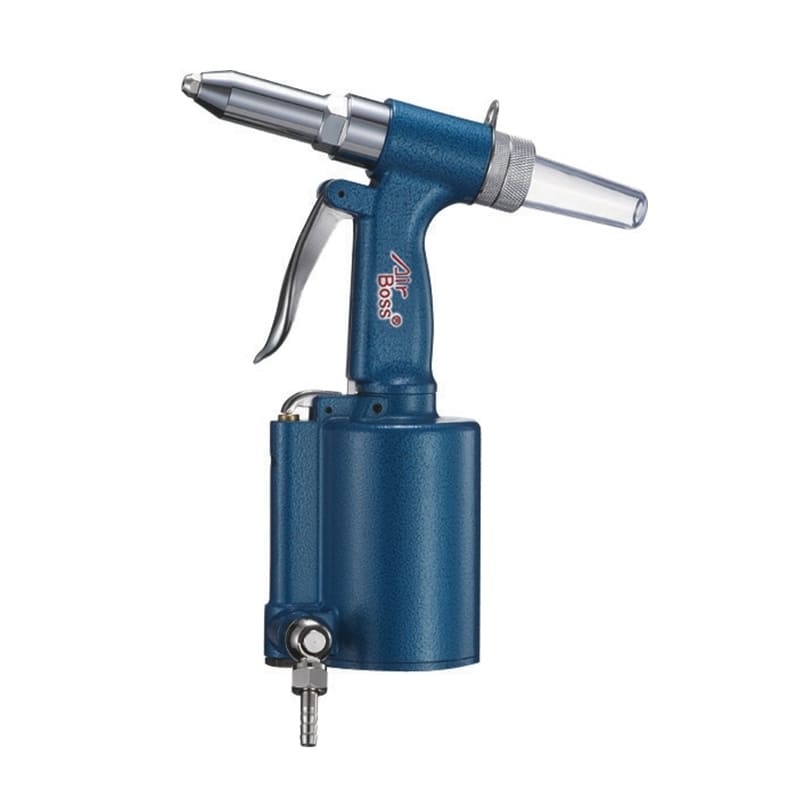

Air Hydraulic Riveter
Model : HR-102
Specification
| Model |
HR-102 |
| Traction Power (lbs) |
3099 |
| Nosepieces (mm) |
2.4-6.4 |
| Stroke (mm) |
19 |
| Rivet Nut (mm) |
--- |
| Free Speed (r.p.m) |
--- |
| Overall Length (mm) |
324 |
| Net Weight (lbs / kg) |
4.6 / 2.1 |
| Air Consumption (m³ / min) |
0.4 |
| Air Inlet (PT/NPT/PF) |
1/4" |
| Air Hose (mm) |
6.4 |
| Air Pressure (kg / cm²) |
6.3 |
Air Hydraulic Riveter
Model : HR-102S
Specification
| Model |
HR-102S |
| Traction Power (lbs) |
3055 |
| Nosepieces (mm) |
2.4-6.4 |
| Stroke (mm) |
14 |
| Rivet Nut (mm) |
--- |
| Free Speed (r.p.m) |
--- |
| Overall Length (mm) |
300 |
| Net Weight (lbs / kg) |
4.4 / 2 |
| Air Consumption (m³ / min) |
0.4 |
| Air Inlet (PT/NPT/PF) |
1/4" |
| Air Hose (mm) |
6.4 |
| Air Pressure (kg / cm²) |
6.3 |
