DRW42-S7X


42" Tool Cabinet with 7 Drawers

Description

  • Fully shelf-closing ball bearing slide.
  • Large diameter surface covered handle, excellent sensible touching.
  • 6"x2" heavy-duty roller Column caster. (2 Swivels +2 Swivels with brake)
  • Protecting top of the surface with 15mm thick particle board on top of roll-wagon.
  • POne-piece steel of cabinet body provides more strength to the whole one unit-body structure.
  • 100 numbers internal locking system for extra security.
  • Quick-release design on the ball bearing slide can be easily removed for replacement.
  • 100% open ball bearing slide.
  • Strengthen lower part under the large drawer, Can be loaded with extra-large size tools capacity.
  • The patented locking system, pushing the unlocked drawer to be locked while all others are locked.
  • Drawers are interchangeable.
  • Four fixtures on two sides can be attached and hung other equipment.
  • Powder coating finishing.
  • Hemmed edge for aII drawers and body to add strength and safety.
  • 2mm protective drawer liners.

Specification

Model DRW42-S7X
Net Weight 129kg / 284.3lbs
Overall W x D x H 1070mm x 460mm x 1150mm
Overall w/o Caster W x D x H 1070mm x 460mm x 980mm
Casters 6" x 2"
4PCS (2 fixed + 2 swivel)
Number of Drawers 7
Drawers Size W x D x H 576mm x 380mm x75mm (5 units)
576mm x 380mm x 154mm (1 unit)
927mm x 380mm x 173mm (1 units)

Accessories (Optional Purchase)

Model No. Description

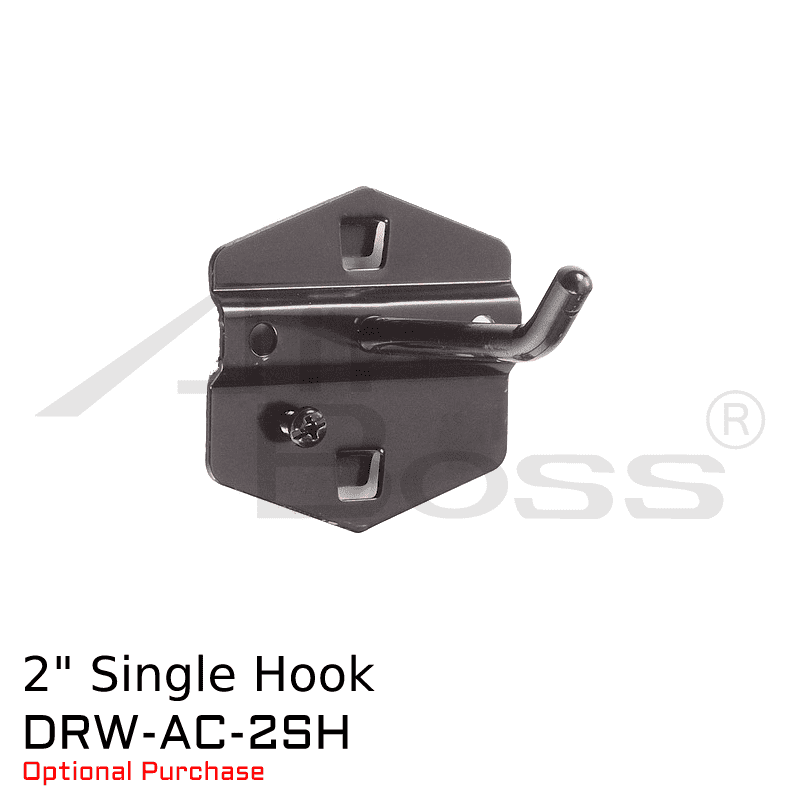

DRW-AC-2SH 2" Single Hook

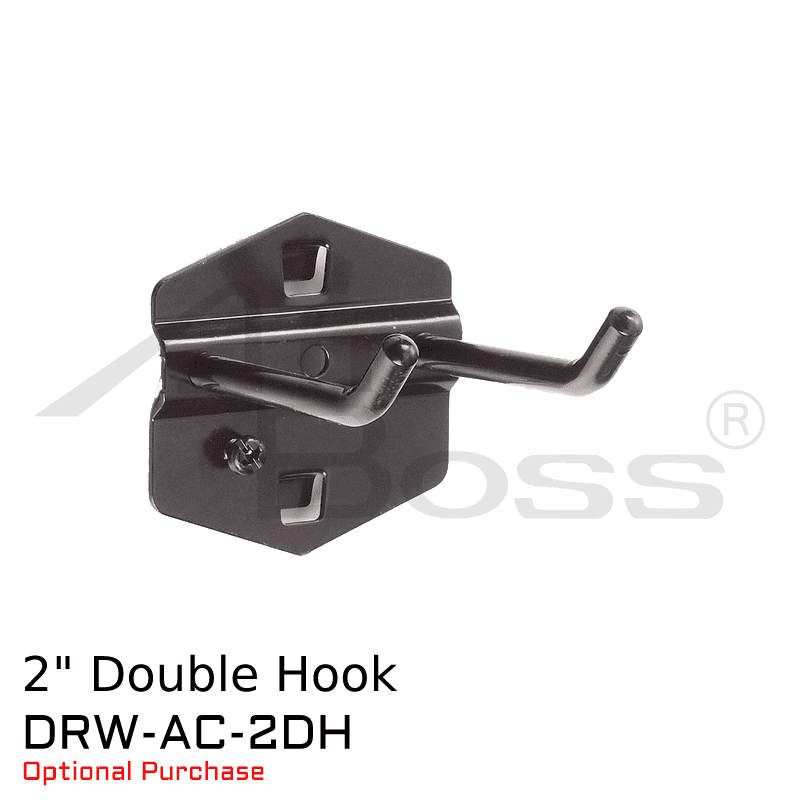

DRW-AC-2DH 2" Double Hook

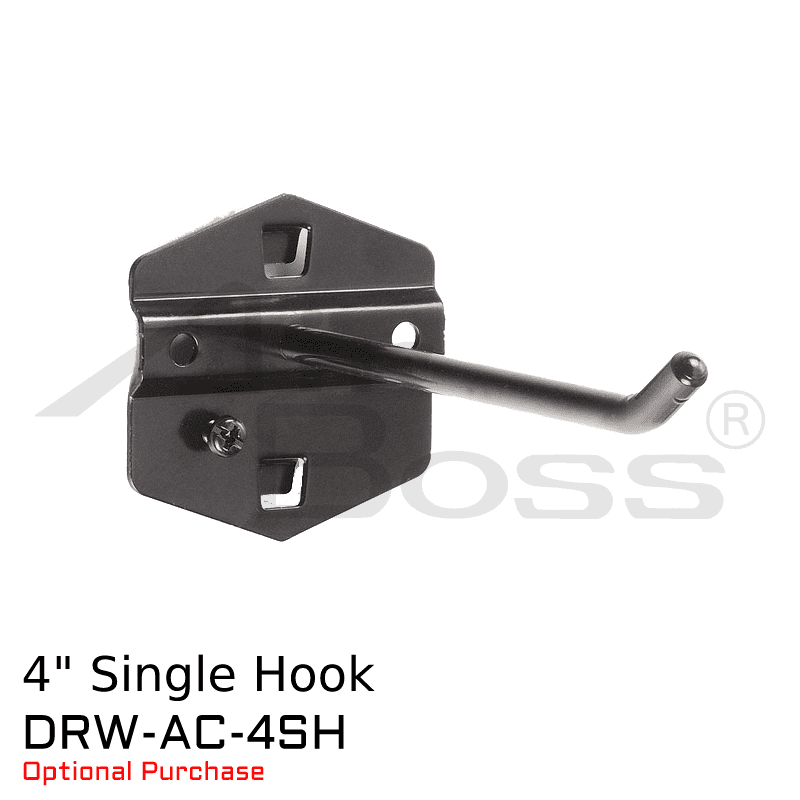

DRW-AC-4SH 4" Single Hook

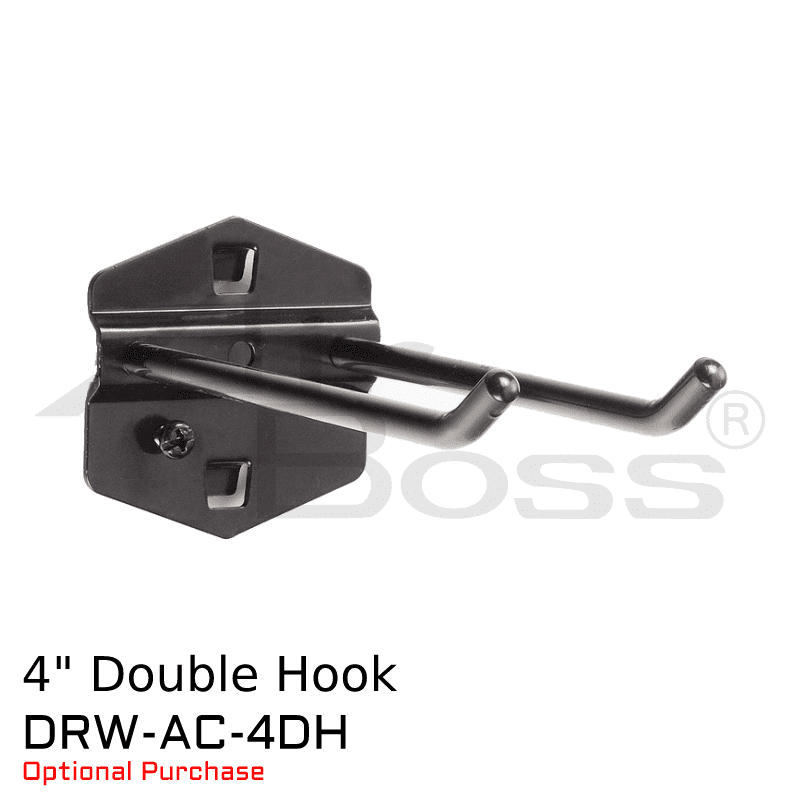

DRW-AC-4DH 4" Double Hook
