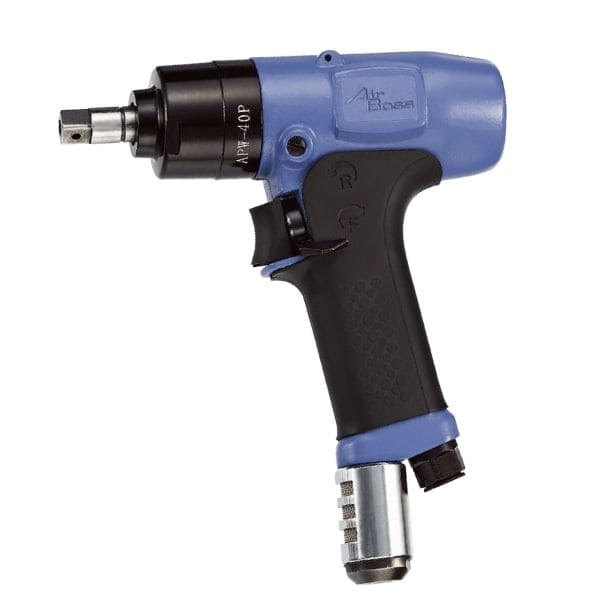

| Model | APW-40P 3/8" |
|---|---|
| Bolt Capacity (mm) | 5 |
| Clutch Mechanism | Oil Pulse |
| Free Speed (r.p.m.) | 4,700 |
| Suitable Torque (ft-lb / N.m) | 3- 6 / 4 - 9 |
| Overall Length (mm) | 164 |
| Net Weight (lbs / kg) | 1.98 / 0.9 |
| Air Consumption (m³ / min) | 0.24 |
| Air Inlet (PT/NPT/PF) | 1/4" |
| Air Hose (mm) | 6.3 |
| Air Pressure (kg / cm²) | 6.3 |
| Model | APW-50P 3/8" |
|---|---|
| Bolt Capacity (mm) | 6 |
| Clutch Mechanism | Oil Pulse |
| Free Speed (r.p.m.) | 7,000 |
| Suitable Torque (ft-lb / N.m) | 6 - 14 / 8 - 19 |
| Overall Length (mm) | 164 |
| Net Weight (lbs / kg) | 1.98 / 0.9 |
| Air Consumption (m³ / min) | 0.42 |
| Air Inlet (PT/NPT/PF) | 1/4" |
| Air Hose (mm) | 10 |
| Air Pressure (kg / cm²) | 6.3 |
| Model | APW 60P 3/8" |
|---|---|
| Bolt Capacity (mm) | 6-8 |
| Clutch Mechanism | Oil Pulse |
| Free Speed (r.p.m.) | 8,500 |
| Suitable Torque (ft-lb / N.m) | 12- 23 / 16 - 32 |
| Overall Length (mm) | 164 |
| Net Weight (lbs / kg) | 1.98 / 0.9 |
| Air Consumption (m³ / min) | 0.42 |
| Air Inlet (PT/NPT/PF) | 1/4" |
| Air Hose (mm) | 10 |
| Air Pressure (kg / cm²) | 6.3 |
| Model | APW 70P 3/8" |
|---|---|
| Bolt Capacity (mm) | 8-10 |
| Clutch Mechanism | Oil Pulse |
| Free Speed (r.p.m.) | 6,300 |
| Suitable Torque (ft-lb / N.m) | 23 - 40 / 30 - 55 |
| Overall Length (mm) | 176 |
| Net Weight (lbs / kg) | 2.64 / 1.2 |
| Air Consumption (m³ / min) | 0.54 |
| Air Inlet (PT/NPT/PF) | 1/4" |
| Air Hose (mm) | 10 |
| Air Pressure (kg / cm²) | 6.3 |
| Model | APW 80P 3/8" |
|---|---|
| Bolt Capacity (mm) | 10 |
| Clutch Mechanism | Oil Pulse |
| Free Speed (r.p.m.) | 6,000 |
| Suitable Torque (ft-lb / N.m) | 30 - 51 / 40 - 70 |
| Overall Length (mm) | 176 |
| Net Weight (lbs / kg) | 2.64 / 1.2 |
| Air Consumption (m³ / min) | 0.54 |
| Air Inlet (PT/NPT/PF) | 1/4" |
| Air Hose (mm) | 10 |
| Air Pressure (kg / cm²) | 6.3 |
