| Model | HA-101 |
|---|---|
| Piston Stroke (mm) | 45 |
| Stroke Speed (r.p.m) | 5000 |
| Overall Length (mm) | 133 |
| Net Weight (lbs / kg) | 2.6 / 1.2 |
| Air Consumption (m³ / min) | 1 |
| Air Inlet (PT/NPT/PF) | 1/4" |
| Air Hose (mm) | 9.5 |
| Air Pressure (kg / cm²) | 6.3 |

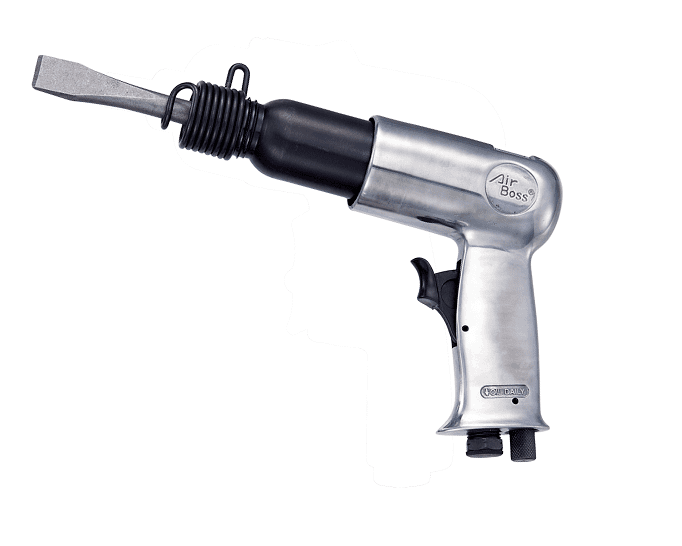

| Model | HA-102 |
|---|---|
| Piston Stroke (mm) | 66 |
| Stroke Speed (r.p.m) | 3000 |
| Overall Length (mm) | 170 |
| Net Weight (lbs / kg) | 3.3 / 1.5 |
| Air Consumption (m³ / min) | 1 |
| Air Inlet (PT/NPT/PF) | 1/4" |
| Air Hose (mm) | 9.5 |
| Air Pressure (kg / cm²) | 6.3 |

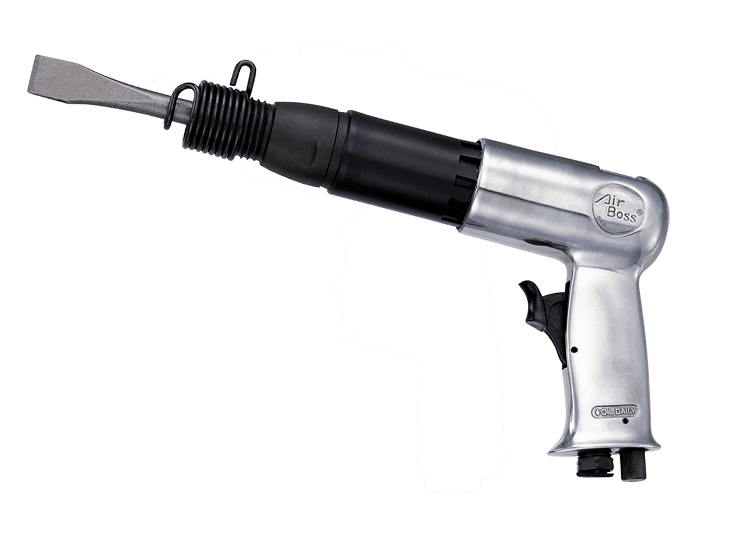

| Model | HA-103 |
|---|---|
| Piston Stroke (mm) | 96 |
| Stroke Speed (r.p.m) | 2100 |
| Overall Length (mm) | 225 |
| Net Weight (lbs / kg) | 4.2 / 1.9 |
| Air Consumption (m³ / min) | 1 |
| Air Inlet (PT/NPT/PF) | 1/4" |
| Air Hose (mm) | 9.5 |
| Air Pressure (kg / cm²) | 6.3 |
