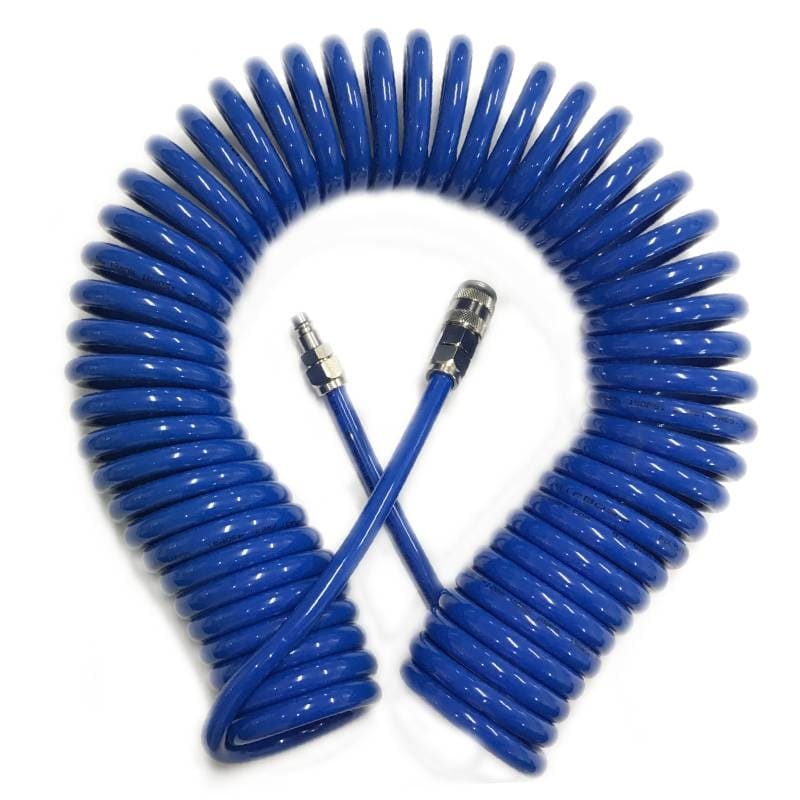

Spiral Hose
PUR
Specification
| Part number | Model | Length M(ft) | Inner diameter mm(inch) | External diameter mm(inch) |
|---|---|---|---|---|
| PUR-0802M | Spiral Hose PU 5x8mm | 2M(78) | 5mm(3/16) | 8mm(5/16) |
| PUR-0806M | Spiral Hose PU 5x8mm | 6M(236) | 5mm(3/16) | 8mm(5/16) |
| PUR-0808M | Spiral Hose PU 5x8mm | 8M(314) | 5mm(3/16) | 8mm(5/16) |
| PUR-0809M | Spiral Hose PU 5x8mm | 9M(351) | 5mm(3/16) | 8mm(5/16) |
| PUR-0810M | Spiral Hose PU 5x8mm | 10M(393) | 5mm(3/16) | 8mm(5/16) |
| PUR-0812M | Spiral Hose PU 5x8mm | 12M(472) | 5mm(3/16) | 8mm(5/16) |
| PUR-0815M | Spiral Hose PU 5x8mm | 15M(590) | 5mm(3/16) | 8mm(5/16) |
| PUR-1002M | Spiral Hose PU 6.5x10mm | 2M(78) | 6.5mm(1/4) | 10mm(3/8) |
| PUR-1006M | Spiral Hose PU 6.5x10mm | 6M(236) | 6.5mm(1/4) | 10mm(3/8) |
| PUR-1008M | Spiral Hose PU 6.5x10mm | 8M(314) | 6.5mm(1/4) | 10mm(3/8) |
| PUR-1009M | Spiral Hose PU 6.5x10mm | 9M(351) | 6.5mm(1/4) | 10mm(3/8) |
| PUR-1010M | Spiral Hose PU 6.5x10mm | 10M(393) | 6.5mm(1/4) | 10mm(3/8) |
| PUR-1012M | Spiral Hose PU 6.5x10mm | 12M(472) | 6.5mm(1/4) | 10mm(3/8) |
| PUR-1210M | Spiral Hose PU 8x12mm | 10M(393) | 8mm(5/16) | 12mm(1/2) |
| PUR-1212M | Spiral Hose PU 8x12mm | 12M(472) | 8mm(5/16) | 12mm(1/2) |
| PUR-1215M | Spiral Hose PU 8x12mm | 15M(590) | 8mm(5/16) | 12mm(1/2) |
| PUR-1410M | Spiral Hose PU 10x14mm | 10M(393) | 10mm(3/8) | 14mm(9/16) |
| PUR-1415M | Spiral Hose PU 10x14mm | 15M(590) | 10mm(3/8) | 14mm(9/16) |
